Wagner Performance intercooler BMW 525d/530d/535d E60/E61 and 635d E63/E64

Product description

Wagner intercooler BMW 525d/530d/535d - 200001060

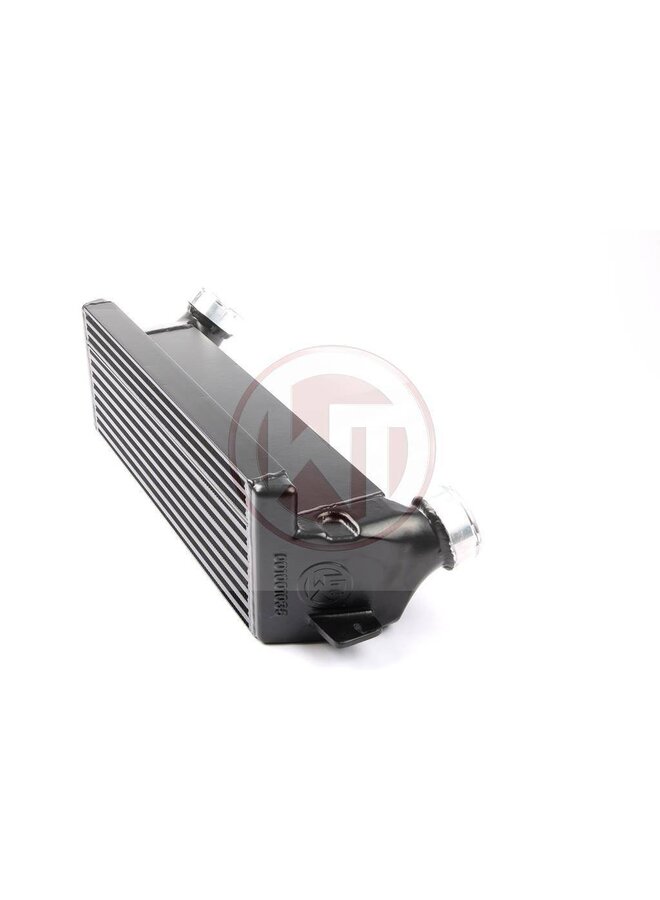

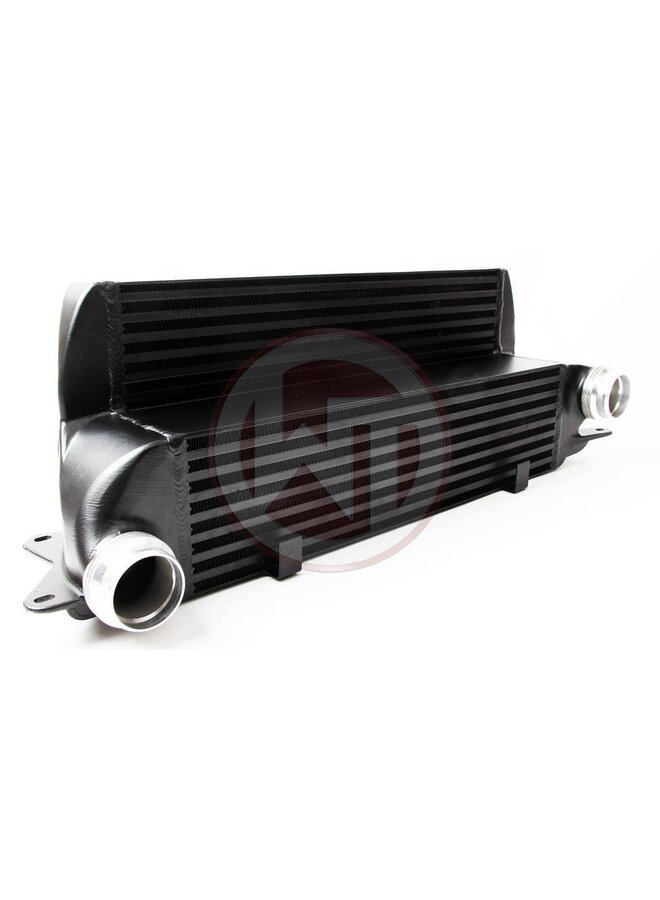

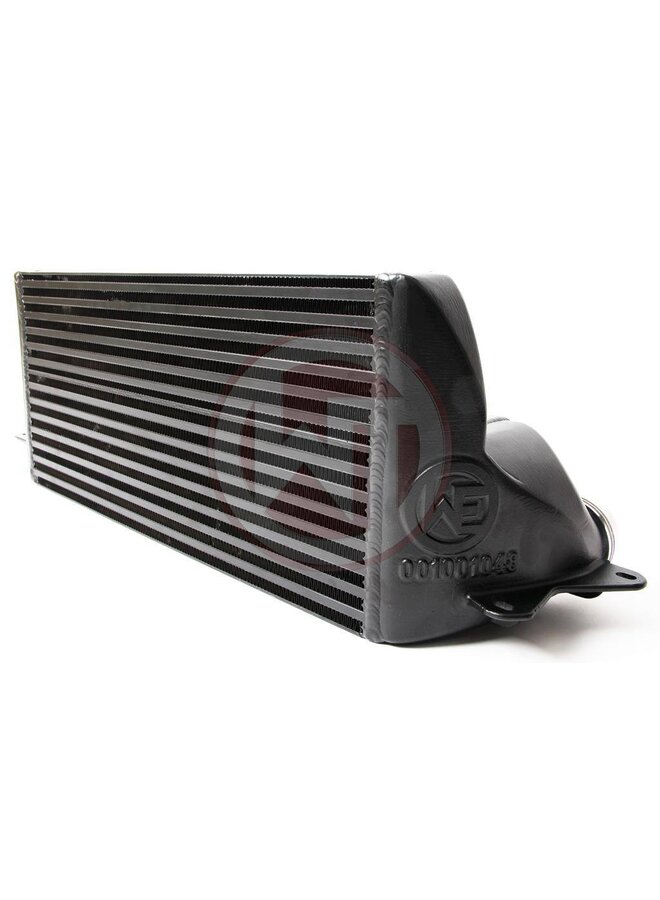

Wagner Performance 200001060 is the intercooler for the specified diesel versions of the BMW 5 and 6 Series. Its stepped core measures 530 × 244 [134] × 150 [50] mm with a 13.5-litre volume. Cast-aluminium end tanks combine with that core to replace the original intercooler.

Specification and contents

• Part: 200001060.
• Core dimensions: 530 × 244 [134] × 150 [50] mm.
• Core volume: 13.5 litres.
• Weight: 9.8 kg.

Application

• BMW 525d E60/E61 (2004–2010).
• BMW 530d E60/E61 (2003–2010).
• BMW 535d E60/E61 (2004–2010).
• BMW 635d E63/E64 (2006–2010).

Wagner states that the original charge-air hoses can be retained. For the 525d and 530d, it also explicitly requires adjustment of the module carrier; include that application-specific work in the installation plan. Listed weight is 9.8 kg, and installation instructions accompany the intercooler. The diesel applications below identify the versions supported under this part number.
