KW Coilover kit variant 3

Product description

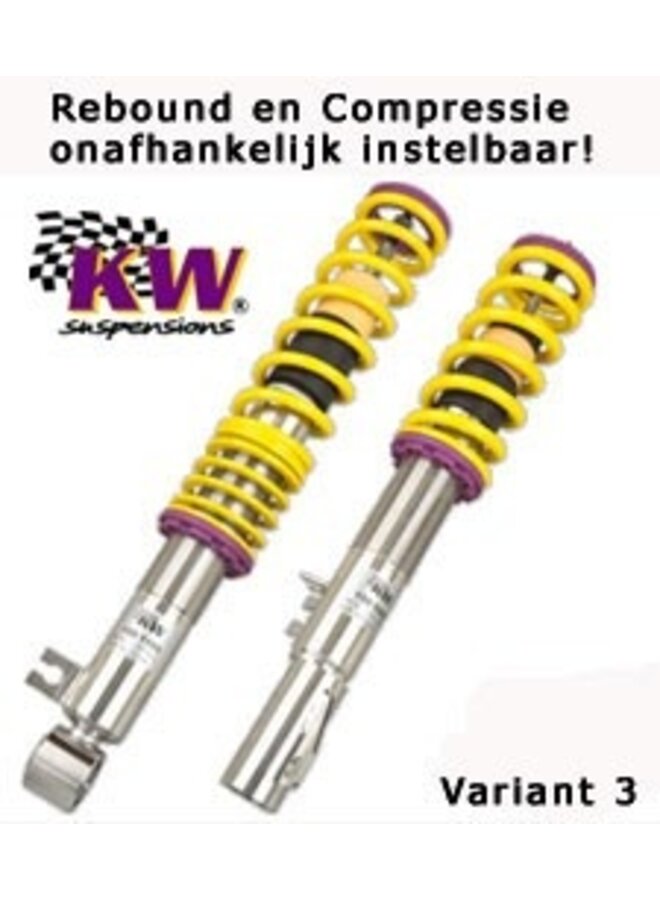

KW V3 coilovers BMW E90/E92 - 35220032

This KW V3 for BMW E90 and E92 adds separate compression and rebound adjustment to height adjustment. Part 35220032 therefore provides more tuning options than a kit with preset damping or rebound adjustment alone. The selected body style determines the permitted lowering range.

Technology and specification

• KW part number: 35220032.
• Housing: stainless steel (inox-line).
• Damping: compression and rebound independently adjustable.
• Height adjustment: threaded front struts and adjustable rear spring seats with dampers.
• Rear-wheel drive, without electronic damping.

Application and lowering

E92 Coupe applications list 20–50 mm front and 15–45 mm rear; the E90 Sedan uses different figures under the same part number. Check the axle-load limits and the version without electronic damping. Start from KW’s base setup and consider height, damping and wheel alignment together as one suspension configuration.
